AC Servo Motor & Drive

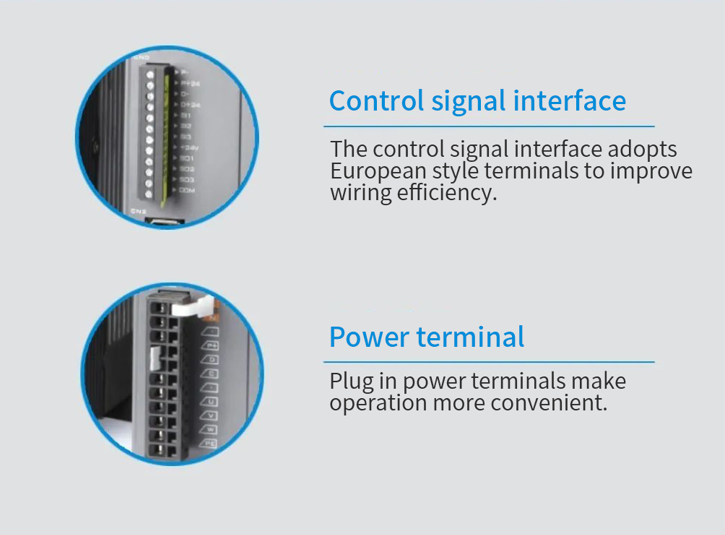

Drive : DS5L1-21P5-PTA
Power : 1.5 KW
Input power supply : Single / Three Phase ( 200-240V )
Output current : 8A
Dynamic brake : √
Digital input : 5 Ch
Digital output : 3 Ch
Port : RS232, RS485
Pulse : 5V / 24V
Encoder resolution : 17/23bit
Built-in brake resistor : 50Ω 80W
External brake resistor : 30-50Ω 1000W

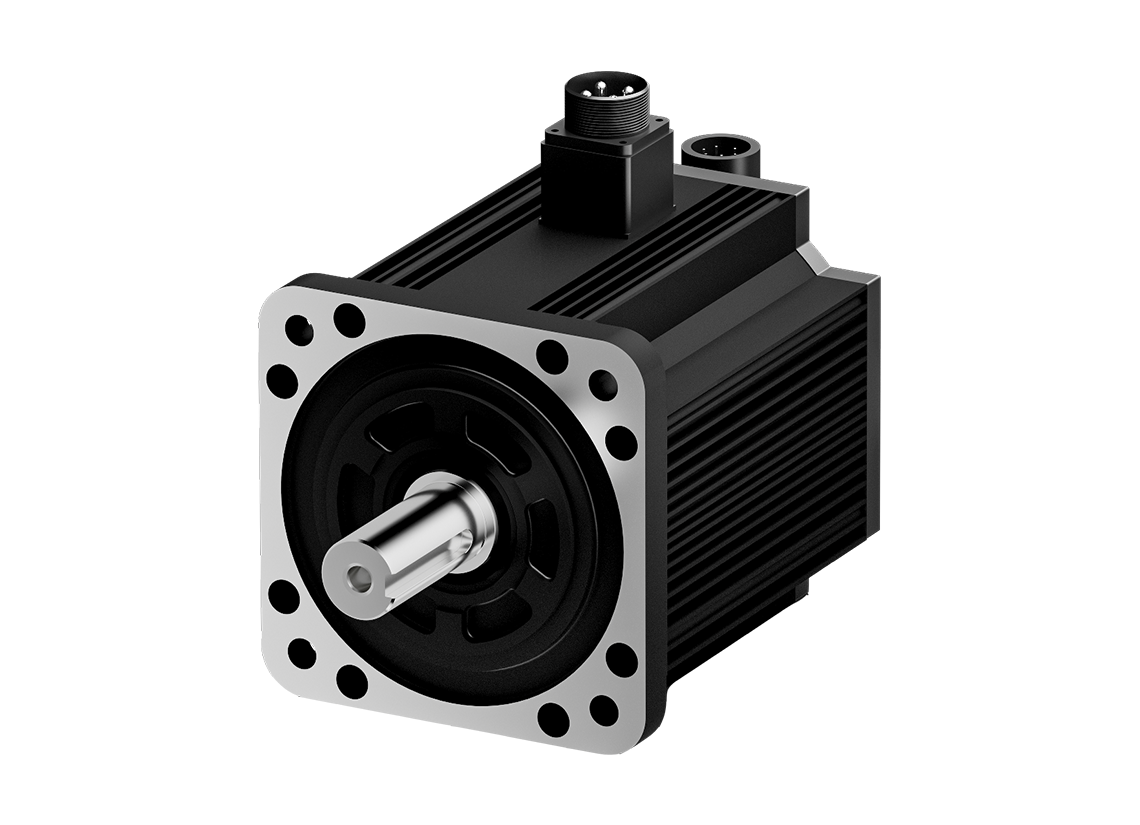

Motor : MS6G-130CS20B2-21P5
Power : 1.5 kW
Inertia type : Medium
Rated speed : 2000 RPM
Max speed : 3000 RPM
Rated torque : 7.2 Nm
Max torque :
Encoder : Magnetic
Flange : 130 mm

Kabel encoder : CP-SCT-M-03
Kabel Motor : CM-L15T-03
